As usual the shell was made from a steel frame; even sides got a basis of fiber-board, easy rounded edges a basis from steel tubes. The 3D-shape of the nose and the cab's roof were cut from EPS-foam and covered basically with several layers of fiberglass. Finally the whole shell was again covered with fiberglass to blend all sections into a continous smooth outline
(2007)

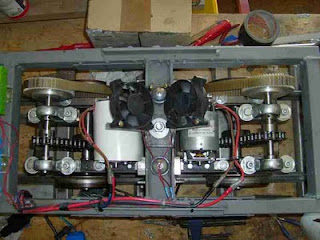

On my model all three axles are powered (in contrast to the prototype) with one motor on each axle. Here is a picture from the front-truck:

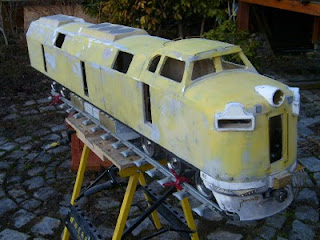

It took a good time to make some progress (05/2008):
(09/2008)
Finally the LWT12 was finished (05/2009):
My Aerotrain consists of three coaches and the observation car. Each car is able to carry a load of 200kg+ which requires a rather heavy construction of the car and its roof. Sub-construction of the roof was made from expanded metal:
The axles are cushioned by a combination of springs and metal-rubber-elements
The observation car in a very early condition
The sides received simulated fluting which was made from brass wire soldered to thin brass panels.
The current status of the train (09/2010) - riveting has started....there will be 12000+ rivets on the cars overall
